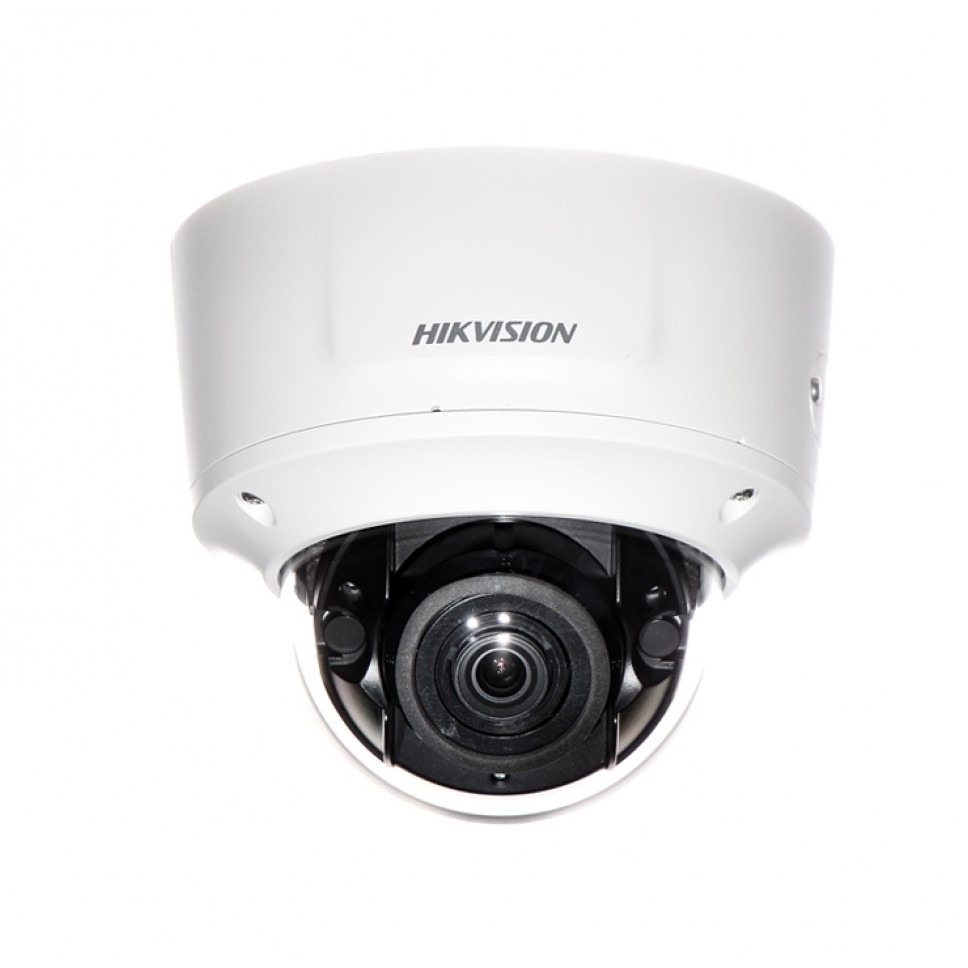

Name: DS-2CD2745FWD-IZS 4MP Motorize Varifokal Lensli WDR IR Dome Kamera (H.265+)
Brand: Hikvision
SKU: DS-2CD2745FWD-IZS
Price: NaN TR

DS-2CD2745FWD-IZS 4MP Motorize Varifokal Lensli WDR IR Dome Kamera (H.265+)

DS-2CD2745FWD-IZS 4MP Motorize Varifokal Lensli WDR IR Dome Kamera
4MP Motorize Varifokal Lensli WDR IR Dome Kamera (H.265+) 1/2.5” PS CMOS,
2.8~12mm Motorize VF Lens, Üçlü Akış, Slow shutter, ~50mt IR, 3D DNR, 120 DB WDR,
BLC, HLC, ROI, ANR, Analizler (Hat ihlali, Alan İhlali, kaybolan nesne, H.265+
unutulan eşya, yüz algılama, sahne değişikliği algılama), 128 GB mSD Desteği,
Ses ve Alarm Girişi/Çıkışı, BNC çıkış (konfigürasyon için), SVC, maskeleme,
Reset butonu, Çevresel gürültü filtreleme, NAS Desteği, IP67, IK10, 12V DC veya POE.
Gece renkli gösterme ( Dark Fighter ) özellikli.

Stok Kodu: DS-2CD2745FWD-IZS

$NaN

Adet

Favori Karşılaştır

Açıklama
PDF & Yazılım

Image Sensor:		1/2.5" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		Horizontal field of view: 114° to 32° Vertical field of view: 59° to 18° Diagonal field of view: 141° to 36.5°
Lens Mount:		φ14
Adjustment Range:		Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night:		IR Cut Filter
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR
Focus:		Auto

Compression Standard
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:		Main Profile/High Profile
Video bit rate:		32Kbps~16Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams:		Yes

Max. Image Resolution:		2688 × 1520
Frame Rate:		50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub Stream:		50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:		50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:		BLC/3D DNR/BLC
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:		Support 1 fixed region for main stream and sub stream separately
Day/Night Switch:		Day/Night/Auto/Schedule/Triggered by Alarm In

Network
Network Storage:		microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:		One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G), ISAPI

Interface
Audio:		1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
Alarm:		1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output:		1Vp-p Composite Output (75 Ω, BNC)
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Audio
Environment Noise Filtering:		Support
Audio Sampling Rate:		8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:		12 VDC, 1 A, max. 11 W PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.5 W
Impact Protection:		IK10
Weather Proof:		IP67
IR Range:		Up to 30m
Dimensions:		Φ153.4 × 133.1 mm (Φ6" × 5.2")
Weight:		Camera: 1287 g (2.8 lb.)
