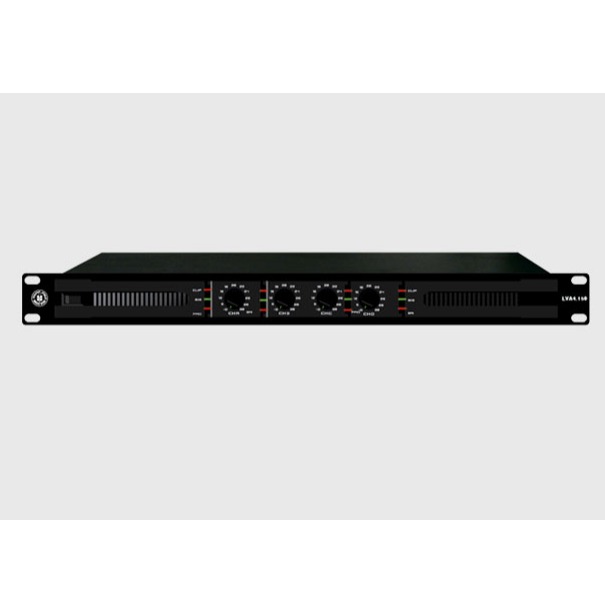

LVA4.150 GÜÇ AMFİSİ

Topppro

    Power (Both channels driven) 360W x 4 2Ω (EIAJ) - 150W x 4 4Ω (RMS) - 90W x 4 8Ω (RMS)
    Bridge Mono 720W x 2 4Ω (EIAJ) - 300W x 2 8Ω (RMS)
    Input Sensitivity (Limiter Off) 0.9 - 1.1V (+0/-1dBv)
    Input Impedance 20K ohms balanced or 10K ohms unbalanced
    Frequency Response 20Hz~20KHz (+0/-1dB) (At 10dB below Rated Output Power)
    Voltage Gain 28 (+/-0.5dB)
    THD + N <0.1% (1KHz 1/8 Rated Power, A-Weighted)
    S/N Ratio (Ref. 1KHz, A-Weighted) > 96dB
    Crosstalk (Below Rated Power) > 70dB
    Damping Factor (1KHz, 8W) > 200
    Power/Output Circuity Switching Power Class-D

Stok Kodu: LVA4.150

lva4150
Fiyat Sorunuz
Renk Seçimi
Power (Both channels driven) 360W x 4 2Ω (EIAJ) - 150W x 4 4Ω (RMS) - 90W x 4 8Ω (RMS)
Bridge Mono 720W x 2 4Ω (EIAJ) - 300W x 2 8Ω (RMS)
Input Sensitivity (Limiter Off) 0.9 - 1.1V (+0/-1dBv)
Input Impedance 20K ohms balanced or 10K ohms unbalanced
Frequency Response 20Hz~20KHz (+0/-1dB) (At 10dB below Rated Output Power)
Voltage Gain 28 (+/-0.5dB)
THD + N <0.1% (1KHz 1/8 Rated Power, A-Weighted)
S/N Ratio (Ref. 1KHz, A-Weighted) > 96dB
Crosstalk (Below Rated Power) > 70dB
Damping Factor (1KHz, 8W) > 200
Power/Output Circuity Switching Power Class-D
Protections Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar
Controls Front: On/Off Power Switch, Volume Channel A, B, C, D - Rear : 8 preset modes
Indicators POWER: 1 blue - PROTECTION & CLIP: 4 red - SIGNAL: 4 green LEDs
Connectors Inputs: Euro block - Outputs: Euro block
Power Supply AC: 110-120V or 220~240V 50/60Hz
Dimension (HxWxD) 44 x 483 x 360 mm / 1.73" x 19.02" x 14.17"
Weight 4.6 kg / 10.14 lbs
