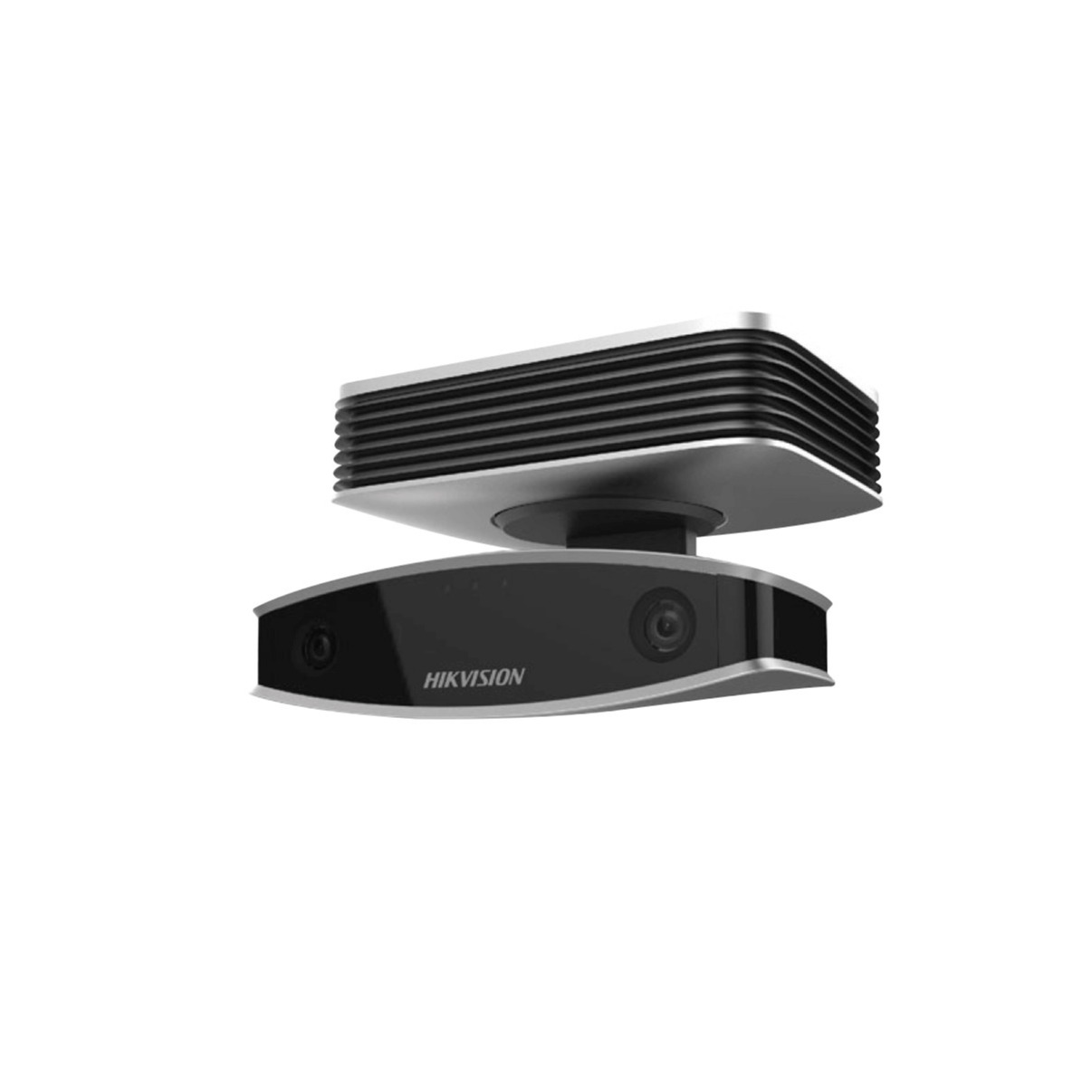

iDS-2CD8426G0/F 2MP Yüz Tanıma Kamerası 10 metre IR
1/2.8″ Progressive Scan CMOS
1920x1080 (1080p @ 25fps)
2 Adet 4mm lens
H.265+ görüntü sıkıştırma formatı
5 Adet Video Stream, Ses ve Alarm Giriş Çıkış
3D DNR, 120dB WDR, BLC,
Yüz Tanıma ve Anlık Alarm Oluşturma, Ses Algılama
10 metre gece görüş mesafesi
Micro SD/SDHC 128GB kart girişi, ONVIF, 36V DC
Stok Kodu: iDS-2CD8426G0/F 2MP
ids-2cd8426g0-f-2mp| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON) Color: 0.0089 Lux @(F1.6, AGC ON) 0 Lux with IR ON |
|
| Slow shutter: | No | |
| Shutter time: | 1/25 s to 1/100,000 s | |
| Lens: | 4 mm × 2 | |
| Adjustment Range: | Tilt: -45°to 90°, rotate: 0°to 355° | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
|
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
|
| Third Stream: | 50Hz: 25fps (3840 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
| Image Enhancement: | BLC, HLC, defog, EIS, lens distortion correction, 3D DNR | |
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| BLC: | Support | |
| HLC: | Support | |
| Smart Defog: | Support | |
| EIS: | Support | |
| 3D DNR: | Support | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) | |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
|
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access | |
| Interface | ||
|---|---|---|
| Alarm: | 1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA) | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| General | ||
|---|---|---|
| Operating Conditions: | -10 °C ~ 40 °C (14 °F ~ 104 °F) Humidity 90% or less (non-condensing) |
|
| Power Consumption: | 36 VDC, max. 27 W, 0.75A | |
| Dimensions: | 180.4 × 147 × 117.9 mm (7.10″ × 5.79″ × 4.64″) | |
| Weight: | Approx. 1500 g (3.31 lb) | |
