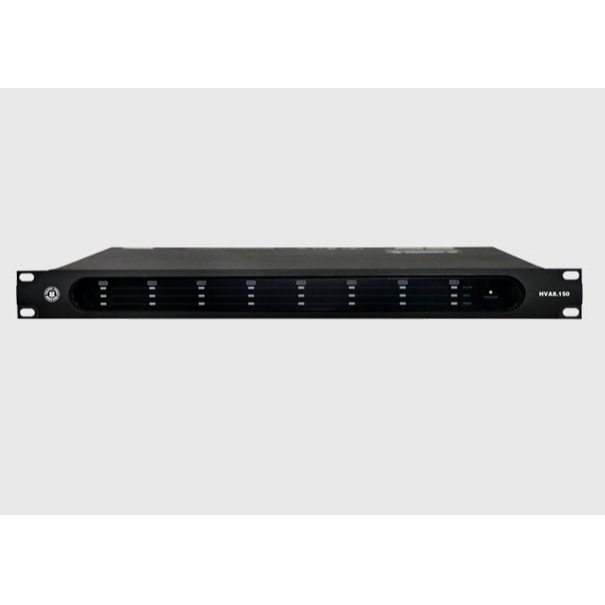

HVA8.150 8X150 WATT GÜÇ AMFİSİ
Power 70V (RMS)
150W x 8 / 135W x 8 (One Channel Driven - 150W x 8 / 135W x 8 (All Channel Driven)
Power 100V (RMS)
150W x 8 / 135W x 8 (One Channel Driven) - 150W x 8 / 135W x 8 (All Channel Driven)
Input Sensitivity (Limiter Off)
0.9 - 1.1V (+0/-1dBv)
Stok Kodu: HVA8.150
hva8150| Power 70V (RMS) | 150W x 8 / 135W x 8 (One Channel Driven - 150W x 8 / 135W x 8 (All Channel Driven) |
| Power 100V (RMS) | 150W x 8 / 135W x 8 (One Channel Driven) - 150W x 8 / 135W x 8 (All Channel Driven) |
| Input Sensitivity (Limiter Off) | 0.9 - 1.1V (+0/-1dBv) |
| Input Impedance | 20KΩ balanced or 10KΩ unbalanced |
| Frequency Response | 20Hz~20KHz (+0/-1dB) |
| Voltage Gain (100V) | - |
| THD + N | <0.1% (Ref. 1KHz 1/8 Rated Power, A-Weighted) |
| S/N Ratio | >95dB (Ref. Rated Power, A-Weighted) |
| Crosstalk (Below Rated Power) | >70dB |
| Damping Factor (1KHz, 8W) | >200 |
| Power/Output Circuity | Switching Power Class-D |
| Protections | Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar. |
| Controls | Rear: On/Off Power Switch, Volume Channel 1 to 8, 70V/ 100V selector |
| Indicators | POWER: 1 green LED - PROTECTION: 2 red LED - SIGNAL: 8 green LED - CLIP & PROTECTION: 8 red LED - POWER: 1 green LED |
| Connectors | Inputs: Euro Block - Outputs: Euro Block |
| Power Supply | AC: 110-120V or 220~240V 50/60Hz |
| Dimension (HxWxD) | 44 x 483 x 360 mm / 1.73" x 19.02" x 14.17" |
| Weight | 7 kg / 15.43 lbs |
