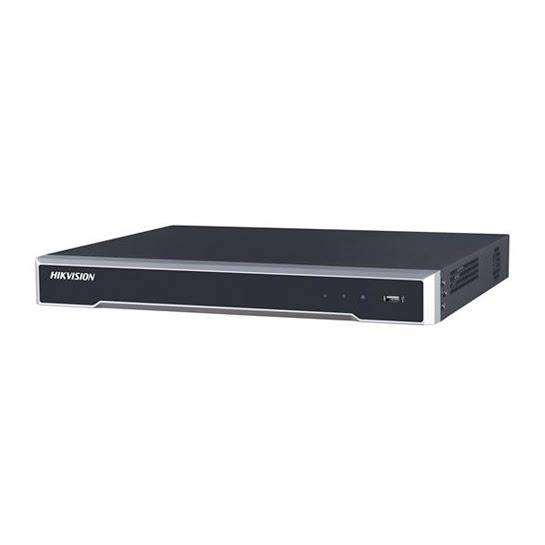

DS-7616NI-K2 16 Kanal NVR
DS-7616NI-K2 16 Kanal NVR
Kayıt/İzleme Bant Genişliği: 160Mbps/160Mbps,
çift yönlü ses desteği,2 SATA HDD (2x6TB)
1xHDMI (4K, 1080p), 1xVGA (1920x1080),
1xSes Çıkışı, 1xUSB 2.0, 1xUSB 3.0,
Alarm girişi/çıkışı: 4/1, 8MP'e kadar Çözünürlük Desteği,
Stok Kodu: DS-7616NI-K2
ds-7616ni-k2| Video/Audio Input | ||
|---|---|---|
| IP video input: | | | 16-ch |
| Two-way audio input: | | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | ||
| Incoming bandwidth: | | | 160Mbps |
| Outgoing bandwidth: | | | 160Mbps |
| Video/Audio Output | ||
| HDMI Output: | | | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | | | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | | | 1-ch, RCA (Linear, 1kΩ) |
| VGA Output: | | | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | ||
| Live view / Playback: | | | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | | | 8-ch@1080P |
| Hard Disk | ||
| SATA: | | | 2 SATA interfaces for 2 HDDs |
| Capacity: | | | Up to 6TB capacity for each HDD |
| External Interface | ||
| Network Interface: | | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | | | 2, USB2.0 |
| Alarm In: | | | 4-ch |
| Alarm Out: | | | 1-ch |
| POE | ||
| Interface: | | | - |
| General | ||
| Power Supply: | | | 100 to 200 VAC |
| Consumption(without hard disk and POE): | | | ≤ 15 W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 385 mm chassis |
| Dimensions: | | | 385 × 315× 52 mm (15.2" 12.4" 2.0") |
| Weight(without HDD): | | | ≤ 3 kg (6.6 lb) |
