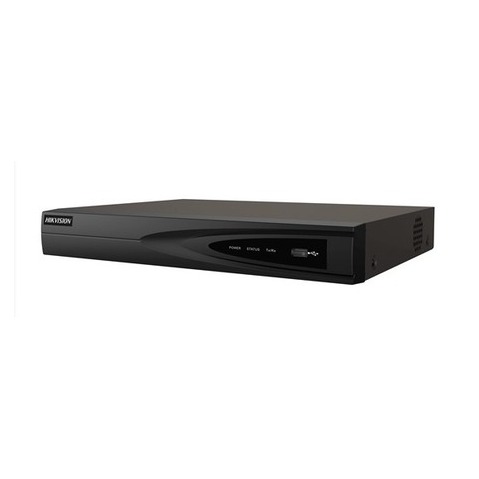

DS-7608NI-K1/8P 8 Kanal NVR (2 SATA, H.265+, POE)
DS-7608NI-K1/8P 8 Kanal NVR
8 Port POE Desteği(120W),H.265+
Kayıt/İzleme bant genişliği:80Mbps/160Mbps,
çift yönlü ses desteği,1xUSB2.0,1xUSB3.0,
2SATA(2x6TB),1xHDMI(4K,1080p),
1xVGA(1920x1080),1xSes Çıkışı,
10/100/1000Mbps Ethernet Arayüz,
8x10/100Mbps PoE Ethernet Arayüz,
Alarm girişi/çıkışı: 4/1, 8MP'e kadar Çözünürlük Desteği
Stok Kodu: DS-7608NI-K1/8P
ds-7608ni-k1-8pVideo/Audio Input | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input | 8-ch |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 80Mbps |
Video/Audio Output | |
HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output | 1-ch, RCA (Linear, 1kΩ) |
VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
Live view / Playback | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Hard Disk | |
SATA | 1 SATA interface for 1 HDD |
Capacity | Up to 6TB capacity for each HDD |
External Interface | |
Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
USB Interface | 2, USB2.0 |
POE | |
Supported Standard | AF and AT |
Interface | 4 independent 10 /100 Mbps PoE |
Ethernet interfaces | |
Max. Power | 75W |
General | |
Power Supply | 48 VDC |
Consumption(without hard disk and POE) | ≤ 10 W |
Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidity | 10 % ~ 90 % |
Chassis | 1U chassis |
Dimensions | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight(without HDD) | ≤ 1 kg (2.2 lb) |
