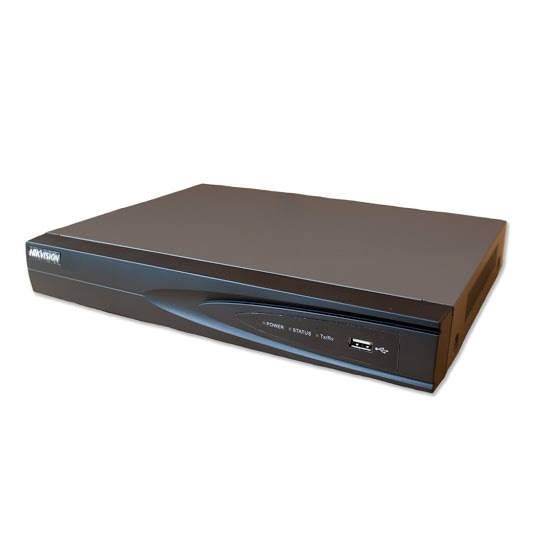

DS-7608NI-E2 8 Kanal NVR (2 SATA)
DS-7608NI-E2 8 Kanal NVR
Kayıt/İzleme Bant Genişliği:80Mbps/80Mbps,
1xHDMI, 1xVGA(1920x1080),2 SATA HDD(2x6TB)
1xSes Çıkışı, Çift yönlü ses desteği,
10/100/1000Mbps Ethernet Arayüz,
1xRJ45,1xUSB 2.0,1xUSB 3.0,
6MP'e kadar Çözünürlük Desteği,
Stok Kodu: DS-7608NI-E2
ds-7608ni-e2| Video/Audio Input | |
| IP video input: | 8-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming bandwidth: | 80Mbps |
| Outgoing bandwidth: | 80Mbps |
| Remote connection: | 128 |
| Video/Audio Output | |
| HDMI/VGA output: | 1-ch, resolution: |
| 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, | |
| 1024 × 768 /60Hz | |
| Recording Resolution: | 6 MP/5 MP/4 MP/3 MP 1080p/UXGA/720p/ |
| VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Frame Rate: | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback: | 8-ch |
| Decoding | |
| Live view / Playback: | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 8-ch@720P, 6-ch@1080P |
| Hard Disk | |
| SATA: | 2 SATA interfaces for 2 HDDs |
| Capacity: | Up to 4TB for each disk |
| External Interface | |
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In: | 4-ch |
| Alarm Out: | 1-ch |
| POE | |
| Interface: | 8 independent 100 Mbps PoE network interfaces |
| Max. Power: | 120W |
| Supported Standard: | AF and AT |
| General | |
| Power Supply: | 100~240VAC |
| Consumption | ≤ 10W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 19-inch rack-mounted 1U chassis |
| Dimensions: | 445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch) |
| Weight(without HDD): | ≤ 1 Kg (2.2 lb) |
