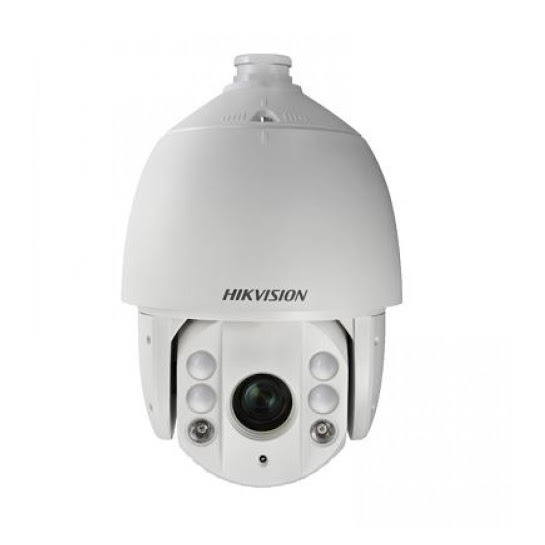

DS-2DE7430IW-AE 4MP Network Harici IR PTZ Kamera (H.265+, 30X, 150mt)
DS-2DE7430IW-AE 4MP Network Harici IR PTZ Kamera
1/1.9’’PS CMOS, 0,005Lux, 30X Optik zoom (5.9-177mm),
150 mt IR, ICR, 3D DNR, BLC, HLC,DWDR(92dB)
Defog, EIS, AWB, ANR, Akıllı IR, ROI, Üçlü NAkış,
Analizler (Ani ses değişikliği, yüz algılama, H.265+
izinsiz giriş, hat ihlali, bölge girişi, bölge çıkışı),
256 Preset, Üçlü akış, Alarm girişi / çıkışı:2/1,
Ses Girişi / Çıkışı, micro SDdesteği(~128GB),
IP66 ,TVS 4000V (yüksek gerilim koruması),
Hi-PoE veya 24VAC
Stok Kodu: DS-2DE7430IW-AE
ds-2de7430iw-ae|
Image Sensor:
|
1/1.9" progressive scan CMOS
|
|
Effective Pixels:
|
2560(H)×1440(V)
|
|
Signal System:
|
PAL/NTSC
|
|
Minimum Illumination:
|
Color: 0.005 Lux @(F1.5, AGC ON)
|
|
|
B/W: 0.002 Lux @(F1.5, AGC ON)
|
|
|
0 Lux with IR
|
|
White Balance:
|
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|
AGC:
|
Auto/Manual
|
|
BLC:
|
ON/OFF
|
|
HLC:
|
Support
|
|
Smart defog:
|
Support
|
|
WDR:
|
DWDR
|
|
Shutter Time:
|
50Hz: 1/1 s to 1/30,000 s
|
|
|
60Hz: 1/1 s to 1/30,000 s
|
|
Day& Night:
|
ICR
|
|
Digital Zoom:
|
16X
|
|
Privacy Masking:
|
8 privacy masks programmable
|
|
Auto Focus:
|
Auto / Semi-automatic / Manual
|
|
Lens
|
|
|
Focal Length:
|
5.9 mm to 177 mm, 30× Optical Zoom
|
|
Zoom Speed:
|
Approx. 4.8 s (Optical Lens, Wide-Tele)
|
|
Angle of View:
|
48.8° to 2.3° (Wide-Tele)
|
|
Minimum Working Distance:
|
10 mm to 1500 mm (Wide-Tele)
|
|
Aperture Range:
|
F1.5 to F3.4
|
|
Pan & Tilt
|
|
|
Pan Range:
|
360°endless
|
|
Pan Speed:
|
Pan Manual Speed: 0.1°-160°/s,
|
|
|
Pan Preset Speed: 240°/s
|
|
Tilt Range:
|
-15°-90° (Auto Flip )
|
|
Tilt Speed:
|
Tilt Manual Speed: 0.1°-120°/s,
|
|
|
Tilt Preset Speed: 200°/s
|
|
Proportional Zoom:
|
Rotation speed can be adjusted automatically according to zoom multiples
|
|
Number of Preset:
|
300
|
|
Patrol:
|
8 patrols, up to 32 presets per patrol
|
|
Power-off Memory:
|
Support
|
|
Park Action:
|
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
|
|
PTZ Position Display:
|
ON/OFF
|
|
Infrared
|
|
|
IR irradiation distance:
|
150m
|
|
IR irradiation angle:
|
Adjustable by zoom
|
|
Alarm
|
|
|
Alarm Input:
|
2
|
|
Alarm Actions:
|
Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
|
|
Input & Output
|
|
|
Audio Input:
|
1 Mic in/Line in interface
|
|
|
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
|
|
Audio Output:
|
1 Audio output interface
|
|
|
Line level, impedance: 600Ω
|
|
Network
|
|
|
Ethernet:
|
10Base -T, /100Base-TX, RJ45 Connector
|
|
Max.Image Resolution:
|
2560 × 1440
|
|
Main Stream:
|
50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
|
|
|
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
|
|
60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
|
|
|
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
|
|
Sub Stream:
|
50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
|
|
Third Stream:
|
50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
|
|
|
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
|
|
Video Compression:
|
Main Stream: H.265+/H.265/H.264+/H.264
|
|
|
Sub-Stream: H.265/H.264/MJPEG
|
|
|
Third Stream: H.265/H.264/MJPEG
|
|
ROI encoding:
|
Support 4 areas with adjustable levels
|
|
Audio Compression:
|
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
|
|
Protocols:
|
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
|
|
No. of Simultaneous Users:
|
Up to 20 users
|
|
Three-Stream:
|
Support
|
|
Mini SD Card:
|
Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
|
|
Security Measures:
|
User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
|
|
Hik-Connect:
|
Support
|
|
Client GUI
|
|
|
Camera Control:
|
Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
|
|
Date & Time Display:
|
Time: Week: Date, 6 formats on the Client
|
|
Client:
|
Support iVMS-4200
|
|
Web Browser:
|
IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
|
|
General
|
|
|
Menu Language:
|
English
|
|
Power Supply:
|
24 VAC & Hi-PoE
|
|
Power Consumption:
|
Max. 40W
|
|
Working Temperature/Humidity:
|
-30 ℃-65℃(-22℉-149℉)(outdoor)
|
|
|
90% or less
|
|
Protection Level:
|
IP66 standard (outdoor dome)
|
|
|
TVS 4,000V lightning protection, surge protection and voltage transient protection
|
|
Mounting:
|
Various mounting modes optional
|
|
Dimensions:
|
Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor)
|
|
Weight (approx.):
|
4.5kg(9.92Ibs)
|
|
Mount Option:
|
Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
|
