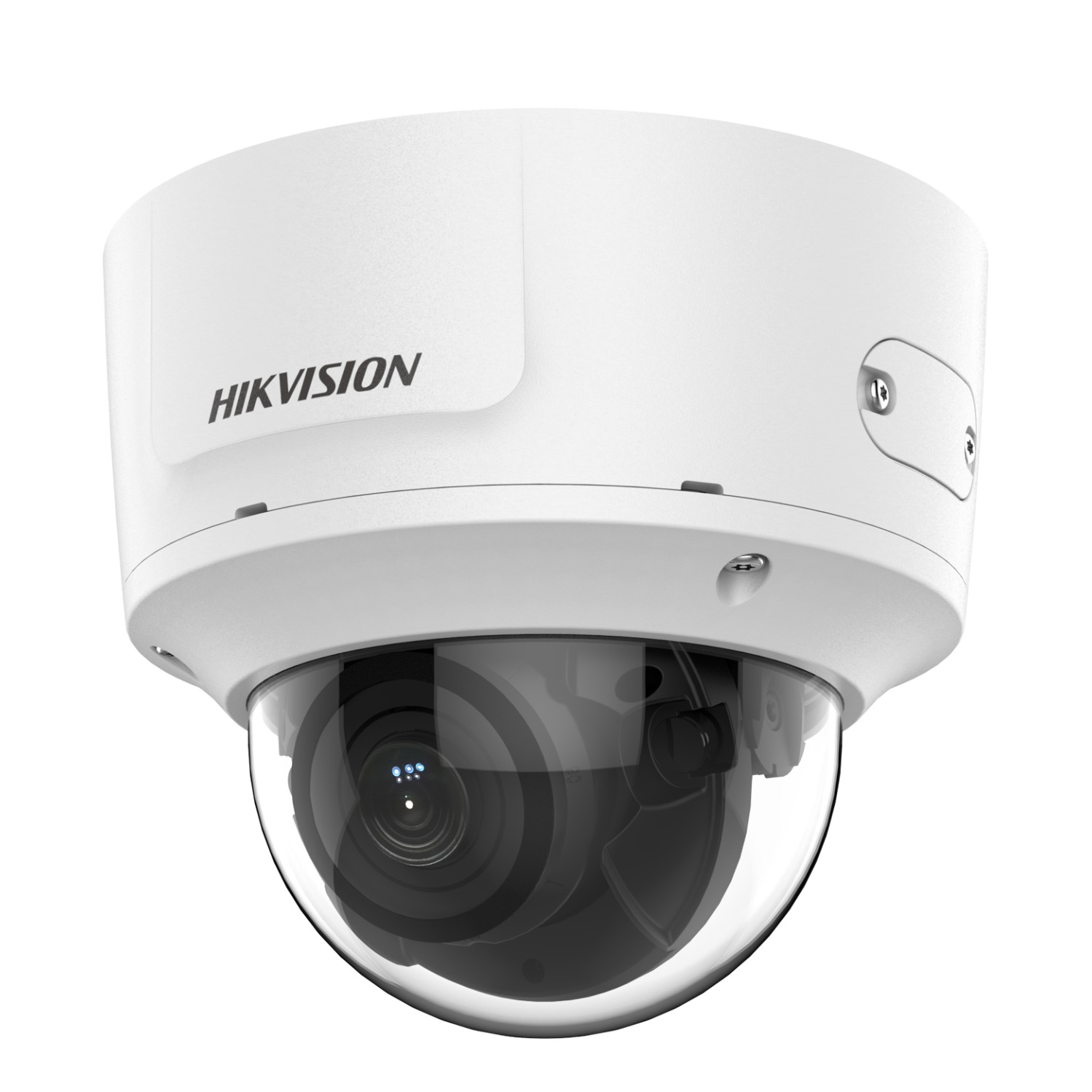

DS-2CD2785G0-IZS 8MP Motorize Varifokal Lensli WDR IR Dome Kamera (H.265+)
DS-2CD2785G0-IZS 8MP Motorize Varifokal Lensli WDR IR Dome Kamera
8MP Çözünürlük, 2.8-12mm Motorize Lens, 120db WDR, 30mt Gece Görüş Mesafesi,
H.265, H.265+, H.264+, H.264, Video Sıkıştırma, ONVIF, PSIA, CGI, ISAPI, H.265+
128 GB Hafıza Kartı Desteği, IP67, IK10 Koruma Sınıfı, 12V DC ve PoE (802.3af),
Akıllı analiz (Çizgi geçiş ihlali, İzinsiz Giriş Algılama, Dinamik Analiz, Hareket Algılama,
Unutulan Bagaj, Kaybolan Nesne, Yüz algılama), BLC, ROI, Titreşim Önleme, 3D DNR
Stok Kodu: DS-2CD2785G0-IZS
ds-2cd2785g0-izsImage Sensor: | 1/2" Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON) | |
Slow shutter: | Support | |
Shutter time: | 1/3 s to 1/100,000 s | |
Lens: | 2.8 to 12 mm | |
Lens Mount: | φ14 | |
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR | |
Focus: | Auto |
Compression Standard | ||
---|---|---|
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
Video bit rate: | 32Kbps~16Mbps | |
Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
Triple Streams: | Yes |
Image | ||
---|---|---|
Max. Image Resolution: | 3840 × 2160 | |
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
|
Image Enhancement: | BLC/3D DNR | |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
ROI: | Support 1 fixed region for main stream and sub stream separately | |
Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by Alarm In |
Network | ||
---|---|---|
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
|
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering |
|
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | ||
---|---|---|
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block | |
Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
Audio | ||
---|---|---|
Environment Noise Filtering: | Support | |
Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
Smart Feature-set | ||
---|---|---|
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
Exception Detections: | Scene change detection | |
Recognition: | Face Detection |
General | ||
---|---|---|
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption: | 12 VDC, 0.9A, max. 10.5W PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W |
|
Impact Protection: | IK10 | |
Weather Proof: | IP67 | |
IR Range: | Up to 30m | |
Dimensions: | Camera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2") | |
Weight: | Camera: 1300 g (2.9 lb.) With package: 1500 g (3.3 lb.) |
