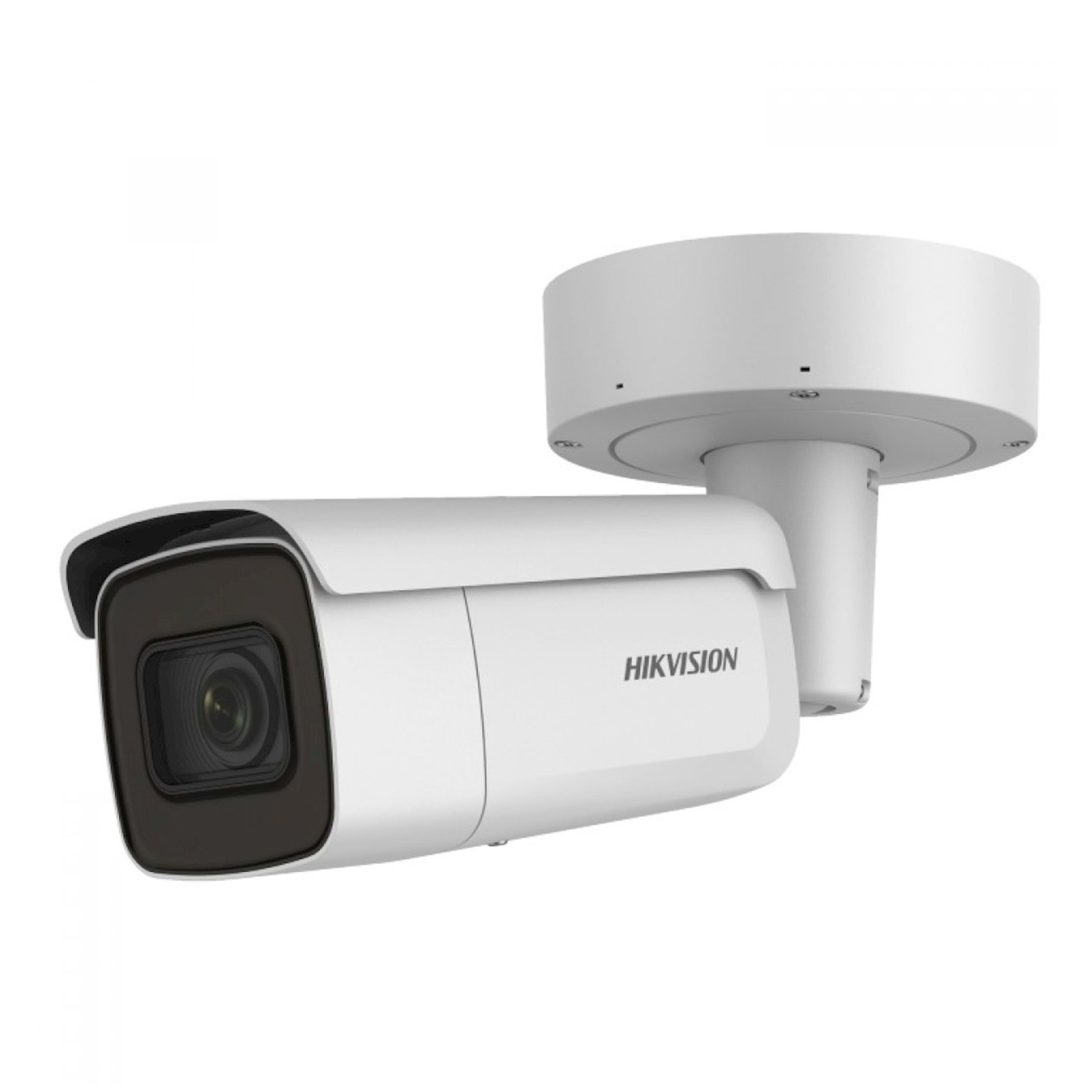

DS-2CD2655FWD-IZS 5MP Motorize Varifokal Lensli WDR IR Bullet Kamera (H.265+)

Hikvision

    DS-2CD2655FWD-IZS 5MP Motorize Varifokal Lensli WDR IR Bullet Kamera
    1/2.9" Progressive Scan CMOS
    2944 × 1656 resolution
    2.8~12mm Motorize VF Lens,
    H.265, H.265+, H.264+, H.264
    120dB Wide Dynamic Range
    BLC/3D DNR/ROI
    IP67, IK10
    4 behavior analyses and face detection

Stok Kodu: DS-2CD2655FWD-IZS

ds-2cd2655fwd-izs
Fiyat Sorunuz
Renk Seçimi
Image Sensor: | 1/2.9" Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8 to 12 mm
Horizontal field of view: 88° to 27°
Vertical field of view: 48° to 16°
Diagonal field of view: 104° to 32°
Lens Mount: | φ14
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: | IR Cut Filter
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: | 32Kbps~16Mbps
Audio Compression: | G.711/G.722.1/G.726/MP2L2
Audio bit rate: | 32 to 128kbps
Triple Streams: | Yes
Max. Image Resolution: | 2944 × 1656
Frame Rate: | 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
60Hz: 20 fps (2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 ×720)
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI: | Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
Network
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA)
Alarm Input: | 1
Alarm Output: | 1
Video Output: | 1Vp-p Composite Output (75 Ω, BNC)
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: | Yes
Audio
Environment Noise Filtering: | Support
Smart Feature-set
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: | Face Detection
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | 12 VDC, 1.3A, max. 15.5W
PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W
Impact Protection: | IK10
Weather Proof: | IP67
IR Range: | Up to 50m
Dimensions: | Φ144.13×332.73 mm (Φ5.67"× 13.10")
Weight: | Camera: 1893 g (4.17 lb.)
