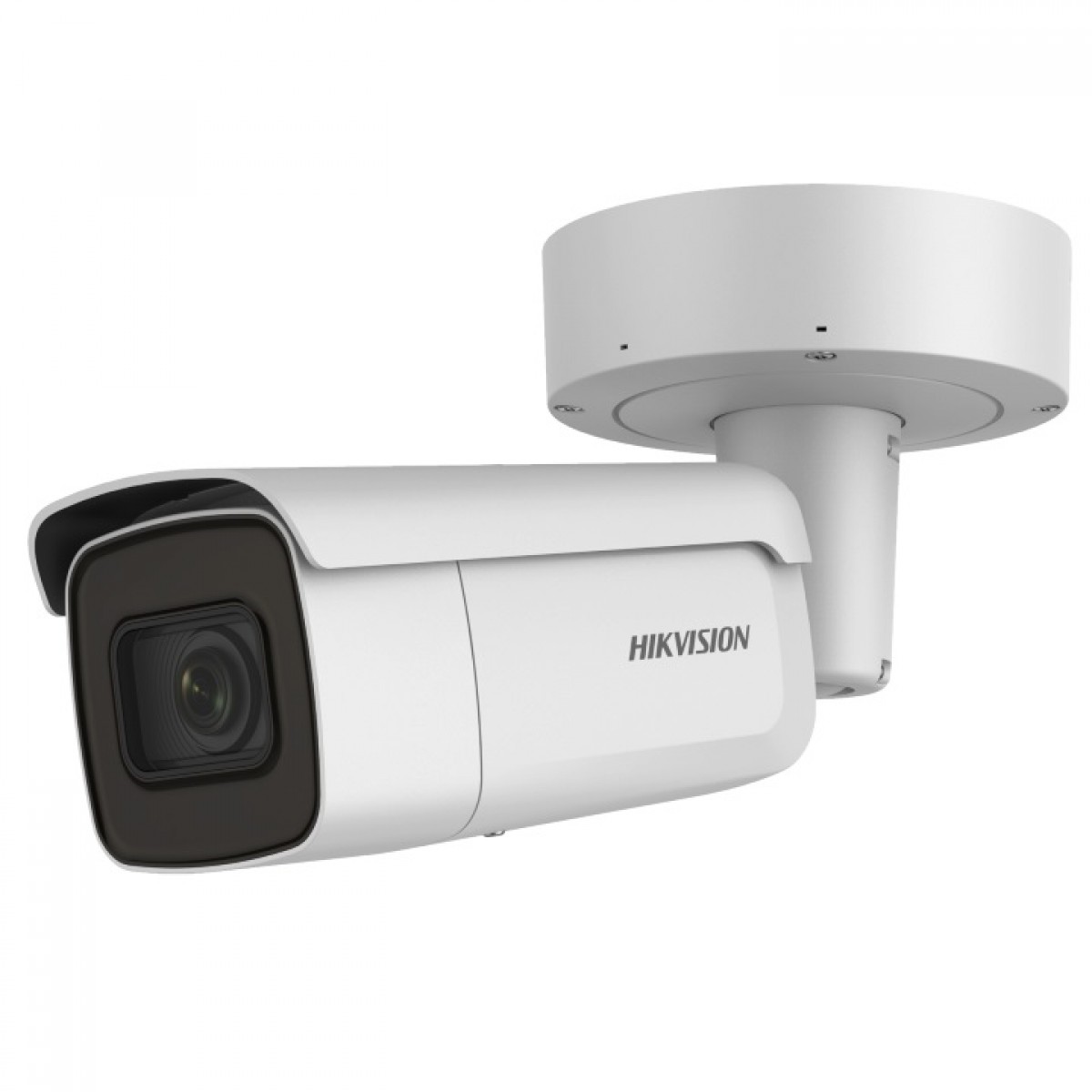

DS-2CD2645FWD-IZS 4MP Motorize Varifokal Lensli WDR IR Bullet Kamera (H.265+)
DS-2CD2645FWD-IZS 4MP Motorize Varifokal Lensli WDR IR Bullet Kamera
1/2.5" Progressive Scan CMOS
2688x1520 (4MP@25fps)
2.8~12mm Motorize Auto Focus Lens
H.265+ Görüntü sıkıştırma formatı
Triple Stream, Ses & Alarm Giriş Çıkışı
3D DNR, 120dB WDR, BLC,HLC
Video Analiz Desteği (Hat geçiş algılama, İzinsiz giriş tespiti,
Nesne kaldırma algılama, Sahipsiz nesne algılama,
Yüz ve Sahne Değişimi algılama)
50 metre gece görüş mesafesi
Micro SD/SDHC 128GB kart girişi
ONVIF, IP67, IK10, 12V DC ve PoE Desteği
Stok Kodu: DS-2CD2645FWD-IZS
ds-2cd2645fwd-izs
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5° |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Auto |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile | Main Profile/High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 2688 × 1520 |
| Frame Rate | 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) |
| 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) | |
| Sub Stream | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR/BLC |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, |
| IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio | 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| Video Output | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection |
| Recognition | Face Detection |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 1.2 A, max. 14.4 W |
| PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W | |
| Impact Protection | IK10 |
| Weather Proof | IP67 |
| IR Range | Up to 50m |
| Dimensions | Φ144.1 × 332.7 mm (Φ5. 7"× 13.1") |
| Weight | Camera: approx. 1893 g (4.2 lb.) |
