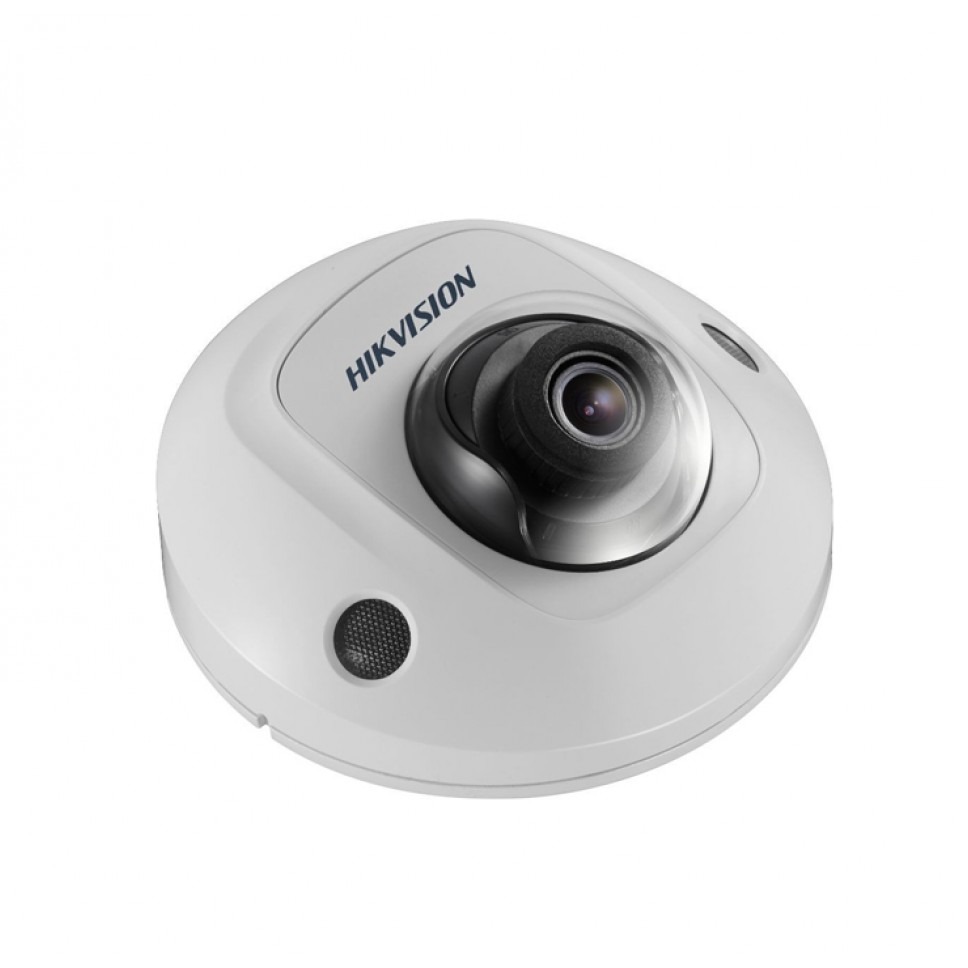

DS-2CD2525FWD-IS 2MP IP IR Dome Kamera [H.265+, Sesli, EXIR]
DS-2CD2525FWD-IS 2MP IP IR Dome Kamera
1/2.8” PS CMOS, 0,005lux, 2.8mm sabit Lens, IR Görüş Mesafesi 10mt,
ICR, 3D DNR, 120dB WDR, microSD(~128GB ), ROI, BLC, HLC, ANR,
SVC, ENF, NAS desteği, Dahili Mikrofon, İzinsiz giriş, hat ihlali,
unutulan nesne, nesne kaybolması, Yüz Algılama, Ses girişi/çıkışı,
Alarm girişi/çıkışı, IP66, Vandal-proof (IK08), 1xRJ45 (10/100M) giriş,
Yüksek gerilim koruması, 12VDC veya POE, H.265+
Stok Kodu: DS-2CD2525FWD-IS
ds-2cd2525fwd-is| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR | |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm: Horizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129° |
| 4 mm: Horizontal field of view: 87°, Vertical field of view: 45°, Diagonal field of view: 102° | |
| 6 mm: Horizontal field of view: 53°, Vertical field of view: 29°, Diagonal field of view: 60° | |
| Lens Mount | M12 |
| Adjustment Range | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub-stream separately |
| Day/Night Switch | Day/Night/Auto/Schedule/ Triggered by Alarm In (-S) |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio | with -S model：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | with -S model：1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support(-S) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections | Scene change detection |
| Recognition | Face Detection |
| Wi-Fi Specification (-W) | |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.412 GHz to 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Wireless Range | 50m(depend on environment) |
| Protocols | 802.11b: DQPSK, DBPSK, CCK |
| 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK | |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.625A, max. 7.5W |
| PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W | |
| Impact Protection | IK08 Protection Level |
| Weather Proof | IP66 |
| IR Range | Up to 10m |
| Dimensions | Φ110 mm × 56.4 mm (Φ4.33" × 2.22") |
| Weight | Camera: Approx. 400 g (0.88 lb.) |
