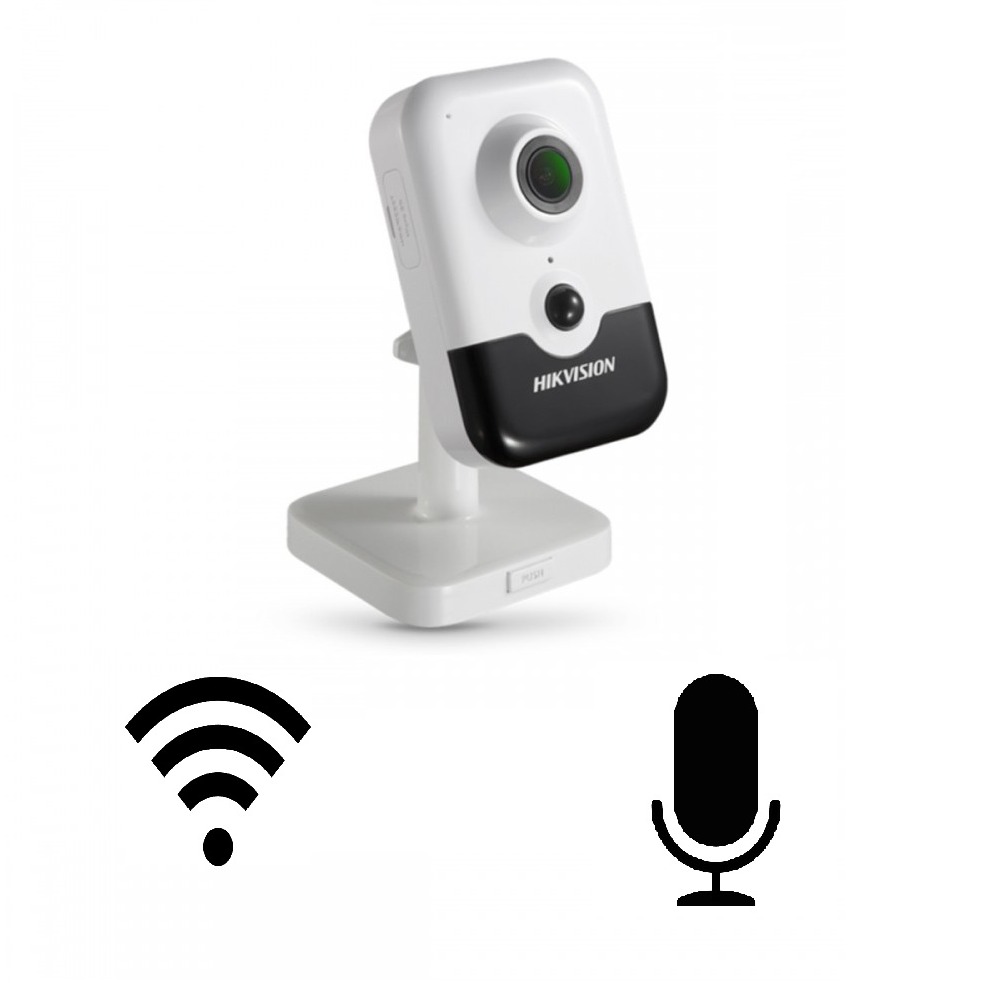

DS-2CD2423G0-IW 2MP IR Cube Kamera (Wi-Fi + Sesli, H.265+)
DS-2CD2423G0-IW 2MP IR Cube Kamera
1/2.7" Progressive Scan CMOS
1920x1080 (2MP@25fps), 2,8mm Lens
H.265+ Görüntü sıkıştırma formatı
Triple stream, Dahili Mikrofon
Dahili Hoparlör, Dahili PIR sensör, Wifi
120dB WDR, 3D DNR, BLC
Video Analiz Desteği ( Hat geçiş algılama ,İzinsiz giriş tespiti , Yüz algılama )
10 metre gece görüş mesafesi
Micro SD/SDHC 128GB kart girişi
ONVIF, 12V DC ve PoE Desteği
Stok Kodu: DS-2CD2423G0-IW
ds-2cd2423g0-iw| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR | |
| Slow shutter: | Support | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Lens: | 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| H.264 code profile: | Main Profile/High Profile | |
| Video bit rate: | 256Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
|
| Image Enhancement: | BLC/3D DNR/BLC | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| ROI: | Support 1 fixed region for main stream and sub-stream separately | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Recognition: | Face Detection | |
| Wi-Fi Specification (-W) | ||
|---|---|---|
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n | |
| Channel Bandwidth: | 20/40MHz Support | |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
|
| Wireless Range: | 50m(depend on environment) | |
| Protocols: | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
|
| General | ||
|---|---|---|
| Operating Conditions: | -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC, 0.5A, max. 6W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W |
|
| IR Range: | Up to 10m | |
| PIR: | 10m | |
| Dimensions: | 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3") | |
| Weight: | Camera: Approx. 128 g (0.3 lb.) | |
