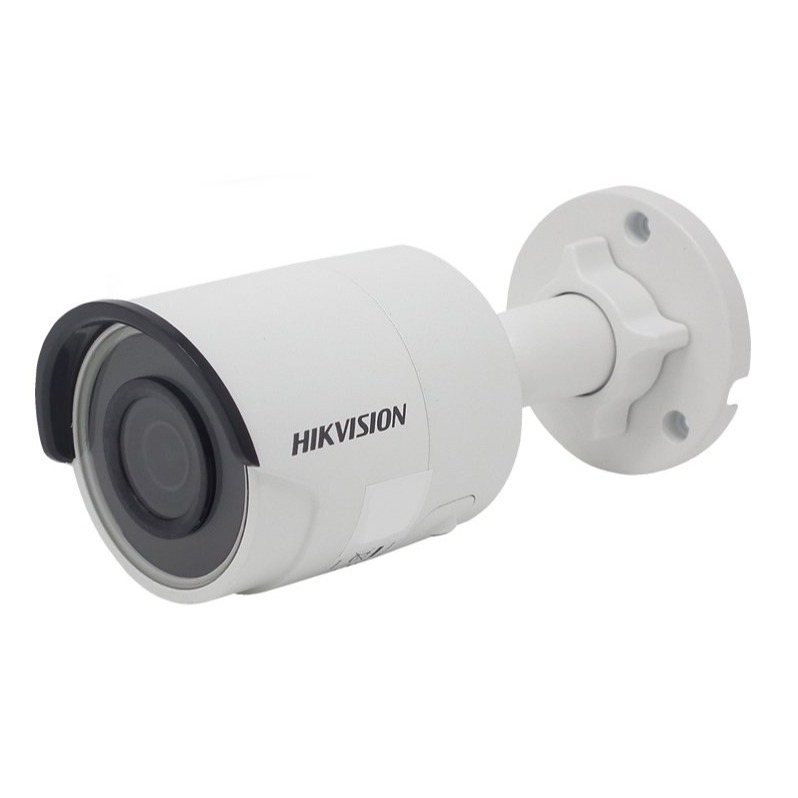

DS-2CD2043G0-I 4MP EXIR Bullet Kamera (H265+)
DS-2CD2043G0-I 4MP EXIR Bullet Kamera
1/3” PS CMOS, 0,01lux renkli,
4mm Sabit Lens, Slowshutter,
ICR, 3D DNR, DWDR, H265+
~30mt IR, İkili akış desteği (Dual Stream),
ROI, BLC, mSD desteği (~128GB), ANR,
Maskeleme, Aynalama, reset butonu, IP66, 12VDC veya POE
Stok Kodu: DS-2CD2043G0-I
ds-2cd2043g0-i| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° |
| 4 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° | |
| 6 mm: horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54° | |
| 8 mm: horizontal FOV: 37°, vertical FOV: 21°, diagonal FOV: 44° | |
| Lens Mount | M12 |
| Adjustment Range | Pan: ° to 360°, tilt: ° to 90°, rotate: ° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Triple Streams | Yes |
| Image | |
| Max. Image Resolution | 2560 × 1440 |
| Frame Rate | 50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080) |
| 60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping | No |
| ROI | 1 fixed region for main stream and sub-stream |
| Day/Night Switch | Auto/Schedule |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G),ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Recognition | Face Detection |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.5A, max. 6W |
| PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W | |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Dimensions | Camera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1") |
| Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") | |
| Weight | Camera: Approx. 420 g (0.9 lb.) |
| With Package: Approx. 700 g (1.5 lb.) | |
