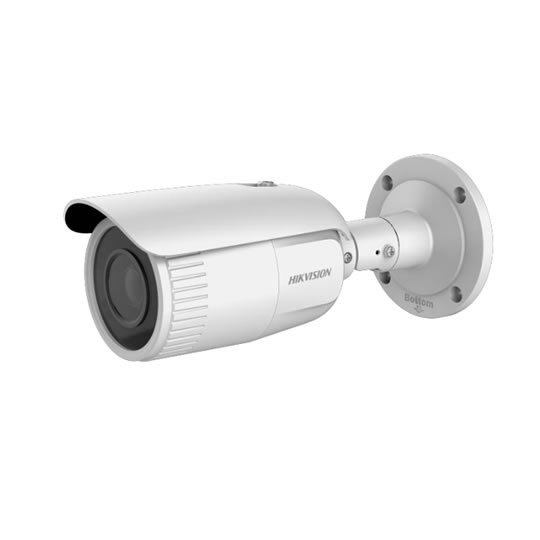

DS-2CD1621G0-IZ 2MP Varifokal Motorize Lensli D-WDR IR Bullet Kamera (H.264+)
DS-2CD1621G0-IZ 2MP Varifokal Motorize Lensli D-WDR IR Bullet Kamera
* 2MP Varifokal Motorize Lensli D-WDR,
* IR Bullet Kamera,H.264+
* 1/2.8” PS CMOS, 2.8~12mm Motorize VF Lens,
* 0,01Lux renkli, 30mt IR, ICR,3D DNR, DWDR, BLC,
* AGC, Aynalama, ROI, Dual Stream, NAS desteği,
* 128GB mSD Desteği, ANR, IP67, 12VDC veya POE
Stok Kodu: DS-2CD1621G0-IZ
ds-2cd1621g0-iz| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination: | Color: 0.01 Lux @(F1.2, AGC ON), 0.017 Lux @(F1.6, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100, 000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm to 12 mm @F1.6 , horizontal field of view: 111.5° to 33° vertical field of view: 58° to 18.5° diagonal field of view: 134° to 38° |
|
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Image Enhancement: | BLC, 3D DNR | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Day/Night Switch: | Day, Night, Auto, Scheduled | |
| Network | ||
|---|---|---|
| General Function: | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC, 0.9 A, max: 11W PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, Max: 12.9W |
|
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Φ105 mm × 244.4 mm (4.1" × 9.6") | |
| Weight: | 705 g (1.6 lb.) | |
