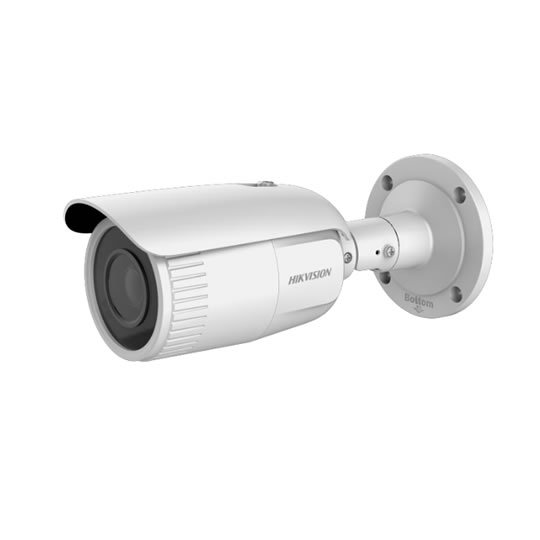

DS-2CD1621G0-I 2MP Varifokal Lensli D-WDR IR Bullet Kamera (H.264+)
DS-2CD1621G0-I 2MP Varifokal Lensli D-WDR IR Bullet Kamera
* 1/2.8” PS CMOS, 2.8~12mm VF Lens, 0,01Lux renkli,
* 30mt IR, ICR, 3D DNR, DWDR, BLC, AGC, Aynalama,
* Dual Stream, 128GB mSD Desteği, ANR, BNC çıkış,
* IP67, 12VDC veya POE, H.264+
Stok Kodu: DS-2CD1621G0-I
ds-2cd1621g0-iCamera | ||
---|---|---|
Image Sensor: | 1/2.8" Progressive Scan CMOS | |
Min. Illumination: | Color: 0.01 Lux @(F1.2, AGC ON), 0.017 Lux @(F1.6, AGC ON), 0 Lux with IR | |
Shutter time: | 1/3 s to 1/100, 000 s | |
Slow shutter: | Support | |
Lens: | 2.8 mm to 12 mm @F1.6 , horizontal field of view: 111.5° to 33° vertical field of view: 58° to 18.5° diagonal field of view: 134° to 38° |
|
Lens Mount: | φ14 | |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | Digital WDR | |
Digital noise reduction: | 3D DNR |
Compression Standard | ||
---|---|---|
Video Compression: | H.264/MJPEG | |
H.264 code profile: | Baseline Profile/Main Profile | |
Video bit rate: | 32Kbps~8Mbps |
Image | ||
---|---|---|
Max. Image Resolution: | 1920 x 1080 | |
Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
Image Enhancement: | BLC, 3D DNR | |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
Day/Night Switch: | Day, Night, Auto, Scheduled |
Network | ||
---|---|---|
General Function: | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | |
Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | ||
---|---|---|
Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
General | ||
---|---|---|
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
Power Consumption: | 12 VDC, 0.9 A, max: 11W PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, Max: 12.9W |
|
Weather Proof: | IP67 | |
IR Range: | Up to 30m | |
Dimensions: | Φ105 mm × 244.4 mm (4.1" × 9.6") | |
Weight: | 705 g (1.6 lb.) |
