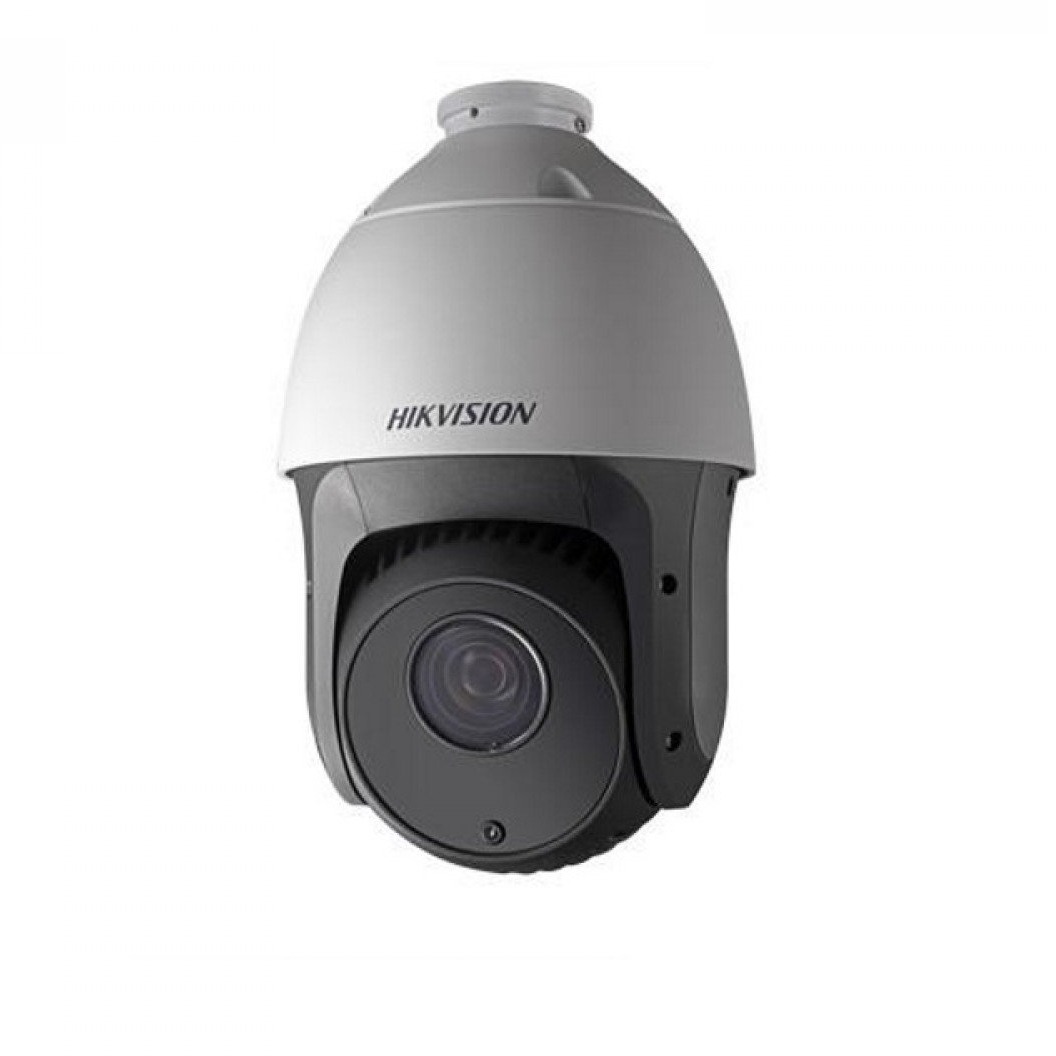

DS-2AE5223TI-A 2 Mp Speed Dome
DS-2AE5223TI-A 2 Mp Speed Dome
* 1/2.8 CMOS, 2.0 MP çözünürlük
* 23x optik zoom
* 1920(H) x 1080(V) piksel
* 150 Metre Gece Görüş
* 3D DNR , Shutter 1/25 -1/10.000s
* IP66 koruma sınıfı
* -30°C / +65°C çalışma sıcaklığı
* 12 VDC * EIS , Voltaj koruma
* UTC, DWDR, AGC,WB, BLC, RS-485, Yıldırım ve aşırı gerilimden koruma, dahili sıcaklık sensörü, 18W
Stok Kodu: DS-2AE5223TI-A
ds-2ae5223ti-aCAMERA | |
---|---|
Image Sensor: | 1/3’’ Progressive Scan CMOS |
Min. Illumination | Color: 0.05Lux@(F1.4,AGC ON);B/W: 0.005Lux@(F1.4,AGC ON) |
Max. Image Resoluon | 1920 x 1080 |
Focal Length | 4-92.0mm, 23x |
Digital Zoom | 16X |
Zoom Speed | Approx.3s(Opcal Wide~Tele) |
Angle of View | 49-2.2 degree(Wide-Tele) |
Min. Working Distance | 10~1,000mm(Wide~Tele) |
Aperture Range | F1.4~F3.5 |
Focus Mode | Auto / Semiautomac / Manual |
DWDR | Support |
S / N Rao | ≥ 50dB |
Shuer Time | 1-1/10,000s |
AGC | Auto / Manual |
White Balance | Auto / Manual / ATW/ Indoor / Outdoor |
Day & Night | IR Cut Filter |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
Enhancement | 3D DNR |
PAN AND TİLT | |
---|---|
Range | Pan:360° endless; Tilt: -15°~90°(Auto Flip) |
Speed | Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s |
Number of Preset | 256 |
Patrol | 8 patrols, up to 32 presets per patrol |
Park Acon | Preset / Patrol / Paern / Pan scan / Tilt scan / Panorama scan |
Scheduled Task | Preset / Patrol / Paern / Pan scan / Tilt scan / Panorama scan |
RS-485 communicaon diagnosis |
Support |
INFRARED | |
---|---|
IR Distance | Up to 150m |
IR Intensity | Automacally adjusted, depending on the zoom rao |
ALARM | |
---|---|
Turbo HD Output | 1 turbo HD720P/1080P output, BNC |
CVBS Output | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
Alarm Input | 2 |
Alarm Output | 1 |
RS-485 Interface | Half-duplex mode Self-adapve HIKVISION,Pelco-P, Pelco-D protocol |
UTC funcon | HIKVISION_C |
GENERAL | |
---|---|
Menu Language | English |
Power | 24VAC, Max. 24W (Heater On), Max. 18W(Heater Off) |
Working Temperature / Humidity |
-30 °C-65°C(-22°F-149°F) 90% or less |
Protecon Level | IP66 standard TVS 4,000V lightning protecon, surge protecon and voltage transient protecon |
Mounng | Various mounng modes oponal |
Dimensions | Φ185×330mm (Φ7.28”×12.99”) |
Weight (approx.) | 4Kg (8.81Ibs) |
Mount Opon (only suitable for outdoor dome) |
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
