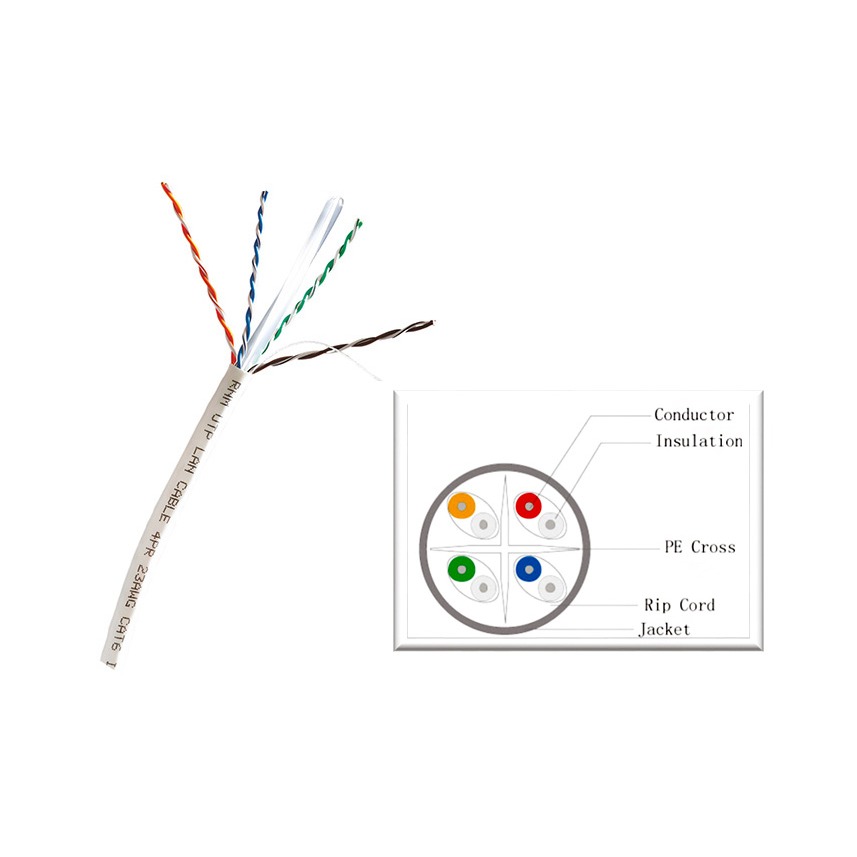

CATEGORY 6 U/UTP 23 AWG LSZH DATA CABLE

• 4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE to be the dielectric and fireproof material to be the jacket
• This cable conform to the standards like ISO/IEC, TIA/EIA and EN
• ETL certified
• All the electrical characteristics are even exceed the latest Cat.6 standards of ISO/IEC. The "+" type inner frame in the center ensures NEXT capacity and reasonable minimum bend radius.

Electrical Charasteristic:

• 23AWG bare annealed copper
• Impedance: 100 ± 15
• Outer diameter: 6.1±0.2mm
• Minimum bend radius: 6-8×OD
• Maximum pulling tension: ≤10
• Jacket material: LSZH
• Temperature operating range : -20~60C
• Packing: 500meter rooler

Application:

• 10/100/1000Mbps Ethernet
• 100VG-AnyLAN
• Token ring
• ATM155/ATM622

Standards:

• TIA/EIA-568C.2
• ISO/IEC-11801 (2nd edition)
• IEC 61156-5 (ISO/IEC-11801 2nd edition)
• CENELEC EN 50288-5
• IEC 60332-1 Flame Test
