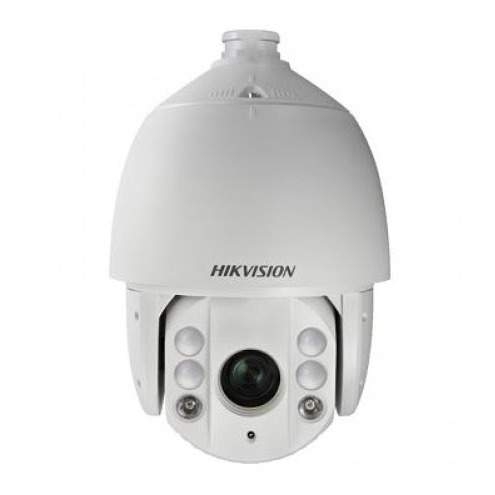

DS-2DE7232IW-AE 2MP Network Harici IR PTZ Kamera (H.265+, 32X, oto-takip, 150mt)
DS-2DE7232IW-AE 2MP Network Harici IR PTZ Kamera
2MP Network Harici IR PTZ Kamera (H.265+, 32X, oto-takip, 150mt IR Mesafesi)
1/2.8" PS CMOS, Renkli: 0.005lux, 0 lux (IR açık), ATW, AWB, AGC, ICR,
16X dijital zoom, maskeleme (24 bölge, programlanabilir), 120dB WDR,
32X optik zoom (4.8-153mm), 150mt akıllı IR, üçlü akış, SVC,
Standart Analiz (Hareket algılama, sabotaj algılama, değişiklikler),
Akıllı analizler (Yüz algılama, izinsiz giriş, sanal hat ihlali, bölge giriş, bölge çıkış,
Nesne kaybolması, unutulan bagaj), ROI, Oto-takip, HLC, BLC, 3D DNR,
Defog, EIS, Bölgesel pozlama, bölgesel fokus, mSD desteği (~256GB), NAS desteği,
ANR, Alarm giriş/çıkışı (2/1), Ses giriş/çıkışı, 24VAC veya
HiPoE (maks.40W), IP66,yüksek gerilim koruması (TVS 4000V)
Stok Kodu: DS-2DE7232IW-AE
ds-2de7232iw-ae| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01lux, 0 lux with IR | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | Support | |
| Shutter Time: | 1-1/10,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Masking: | 2 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | ||
|---|---|---|
| Focal Length: | 4.3-129mm, 32x | |
| Zoom Speed: | Approx.3s(Optical Wide-Tele) | |
| Angle of View: | 65.5-2.11 degree (Wide-Tele) | |
| Minimum Working Distance: | 10-1,500mm(Wide-Tele) | |
| Aperture Range: | F1.6 – F5.0 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Power loss recovery: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Freeze Frame: | Support | |
| Infrared | ||
|---|---|---|
| IR irradiation distance: | 150m | |
| IR irradiation angle: | Adjustable by zoom | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Output: | 1 | |
| Alarm Actions: | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage | |
| Input & Output | ||
|---|---|---|
| Audio Input: | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
|
| Audio Output: | 1 Audio output interface Line level, impedance: 600Ω |
|
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) | |
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
|
| Image Compression: | H.264 / MJPEG | |
| ROI encoding: | Support 2 areas with adjustable levels | |
| Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2 | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | |
| No. of Simultaneous Users: | Up to 20 users | |
| Dual Stream: | Support | |
| Mini SD Card: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording | |
| User/Host Level: | Up to 32 users,3 Levels: Administrator, Operator and User | |
| Security Measures: | User authentication (ID and PW), host authentication (MAC address) | |
| EZVIZ: | Support | |
| Client GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | Support iVMS-4200 | |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + | |
| General | ||
|---|---|---|
| Menu Language: | English | |
| Power Supply: | 24 VAC & Hi-PoE | |
| Power Consumption: | Max. 40W | |
| Working Temperature/Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor) 90% or less |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Mounting: | Various mounting modes optional | |
| Dimensions: | Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor) | |
| Weight (approx.): | 4.5kg(9.92Ibs) | |
| Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box | |
