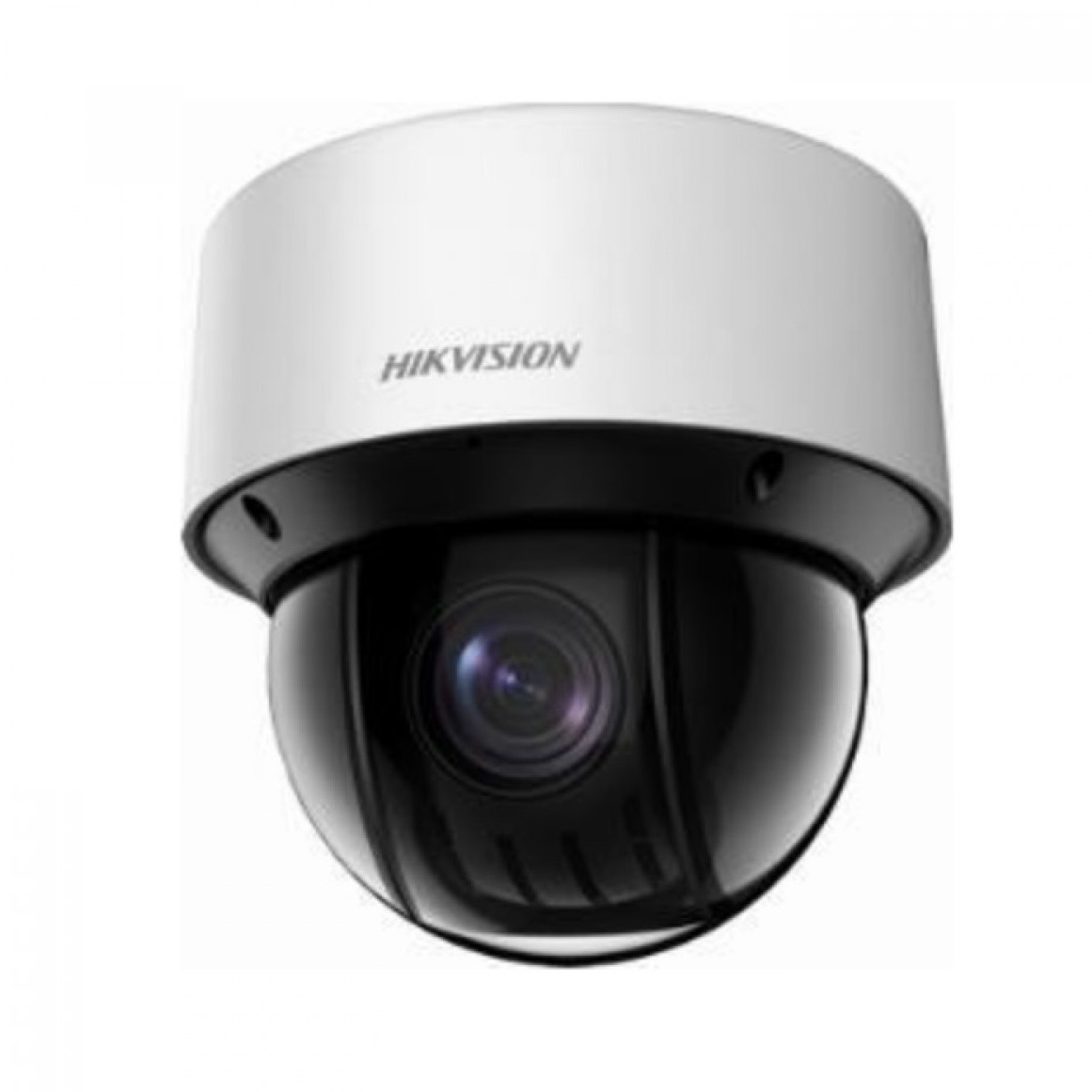

DS-2DE4A220IW-DE 2MP Network İç/Dış Ortam IR PTZ Kamera
DS-2DE4A220IW-DE 2MP Network İç/Dış Ortam IR PTZ Kamera
2MP Network İç/Dış Ortam IR PTZ Kamera, 1/2.8"CMOSsensör,
20Xoptikzoom(4.7-94mm), H.264, Renkli:0.05Lux, B/W:0.01Lux,
0lux(IRaçık), 2048*1536:30fps,1920×1080:60fps,
AGC,BLC,WDR,3DDNR, Üçlü akış desteği,
Alarm girişi/çıkışı: 2/2, Ses girişi/çıkışı,
microSD desteği (128GB),50m IR, IP66,
Yüksek gerilim koruması (4000V),PoE&12VDC
Stok Kodu: DS-2DE4A220IW-DE
ds-2de4a220iw-de| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.05 Lux @ (F1.6, AGC ON) |
| B/W: 0.01 Lux @ (F1.6, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Shutter Time | 1/1 to 1/30,000s |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 4.7 to 94mm |
| Zoom Speed | Approx. 2.7s |
| Angle of View | 61.4° to 2.9° (wide-tele) |
| Minimum Working Distance | 10 to 1500mm (wide-tele) |
| Aperture Range | F1.6 to F3.5 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 300°/s |
| Preset Speed: 350°/s | |
| Tilt Range | -5°~90° (Auto Flip ) |
| Tilt Speed | Configurable, from 0.1°/s to 160°/s |
| Preset Speed: 200°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR irradiation angle | Adjustable by zoom |
| Alarm | |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Actions | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
| Input & Output | |
| Audio Input | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output | 1 Audio output interface |
| Line level, impedance: 600Ω | |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; |
| 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) | |
| Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
| Video Compression | H.265/H.264/MJPEG |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| Mini SD Card | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| User/Host Level | Up to 32 users |
| 3 levels: Administrator, Operator and User | |
| Security Measures | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Client GUI | |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General | |
| Power Supply | 12 VDC &POE (802.3at,class4) |
| Power Consumption | Max.: 18W (IR light 5W Max.) |
| Working Temperature/Humidity | Outdoor: -30°C to 65°C (-22°F to 149°F) |
| Humidity:≤ 90% | |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Mounting | Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, junction box installation and wall mounting |
| Dimensions | Φ169.39mm ×161mm (Φ6.67"×6.34") |
| Weight (approx.) | Approx. 2.45kg (5.40lb) |
